Type: JO-BEC11
    Size: 35.5mm*18mm
      or 1.39in*0.7in

• Built-in antenna, effective distance can reach 15 meters
• Automatic energy saving, supporting low power mode
• FCC,CE,ROSH certificates
• Precise display of signal strength
• Monitoring data of temperature, humidity, light intensity and ultraviolet
• Settable collecting frequency
• Sensitivity：＜－88dBm at ＜ 0. 1% BER

Instruction

   1.1 Brief introduction

    Agricultural sensor beacon is a new generation sensor based on beacon technology developed by Chongqing Jinou Science & Technology Development Co., Ltd.
    It can send data (data of temperature, humidity, light intensity and ultraviolet collected from ambient environment) to a mobile phone or gateway by beacon broadcast. After connected, it can keep getting those information.

• Used in goods storage, such as electronic products, food, wine, leather and fur clothing etc.
• Used in smart farm, such as plants cultivation and animal breeding.
• Used in climate monitoring.
• Used in daily life. For example, you can use it with humidifier or air-conditioner. Then you can create a good environment in your daily life.
• Used in freezing transportation.
• Used in logistics tracking, greenhouse, buildings, baby house, hospitals, etc.

   1.2 System Diagram

Application

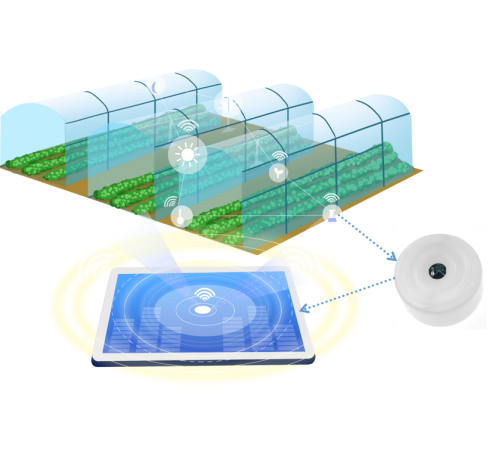

Agrometeorological monitoring

It integrates PC background management system, Bluetooth gateway and beacon sensor equipment, including temperature, humidity, light, ultraviolet and other sensors independently developed by jinou technology, which can realize monitoring and management in various application scenarios.Real time monitoring of air temperature, humidity, light and other data, and by setting the relevant alarm threshold, real-time alarm, accurate control of planting environment indicators.

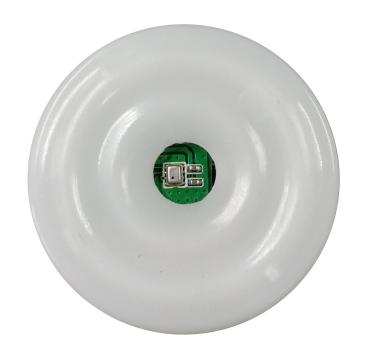

Agricultural Sensors Agricultural sensor beacon is used to detect the ambient temperature, humidity, ultraviolet, light intensity and other values.

Temperature and humidity sensor The logistics temperature and humidity sensor beacon is used to detect the surrounding temperature and humidity.

Bluetooth Gateway It is used to scan the surrounding sensor equipment, obtain the temperature and humidity values in the sensor and upload them to the cloud.

PC Management System Process the collected data uploaded to the cloud, view various numerical records, and realize accurate control.

The platform architecture is clear, easy to operate and convenient for you to use.

Real time monitoring	Numerical monitoring	Abnormal alarm
Historical data query	System management	Secondary development

Intelligent agricultural environmental monitoring

Comprehensive monitoring of farms and accurate control of production problems.

The system includes ble Bluetooth gateway, beacon sensor, cloud server and other components. Through this system, you can monitor the temperature, humidity, light, ultraviolet intensity and other environmental data in the specified scene in real time, and set the relevant alarm threshold to realize real-time alarm and precise control.

Database
