Bluetooth Beacon Gateway or Manager Compatible with iBeacon




    Type:BEM01-2
    Size:106mm*106mm*30mm
    Or 4.17in*4.17*1.81in


  • Linux system
  • 10M
  • Scan 13pcs broadcasting in 8s
  • Connects 1 jinou beacon
  • jinou beacon can change beacon parameter.
  • Support WiFi connection



Product Details

Introduction


    BLE 4.0/4.1 Bluetooth Beacon Gateway WiFi Bridge Wireless Smart ibeacon Manager Jinou BLE Bluetooth gateway supports Bluetooth 4.1BLE specification, follows GATT protocol, compatible with other 4.1BLE devices.
    When BLE getaway searched other BLE devices, it will upload their Bluetooth address, device name, signal power and other information to PC in LAN via TCP/IP.
    It can use RJ45 or WiFi upload information to PC in LAN network.
    BLE gateway and also connect with Jinou Beacons and change beacon parameter such as device name, UUID, Major and Minor.
    In accordance with GATT specification of 4.1BLE. Have good compatibility with other BLE device.


Feature


  • BLE getaway can monitor movement of neighboring BLE devices.
  • BLE gateway has WiFi function. It can connect router via RJ45 port or connect network via WiFi.
  • Having data caching function. Don't lose package when uploading date.
  • In accordance with FCC, CE, ROSH and other certificates.
  • Bluetooth and WiFi use different frequency, circuits and antenna. Has little interference to each other.
  • Bluetooth protocol: LL, MP, L2CAP, ATT, GATT, GAP
  • WiFi supports IEEE 802.11b/g/n protocol.



Hardware overview





  • The gateway is powered by 5V Micro USB.
  • Follow the picture of network accesses, plug cable into BLE gateway LAN port.
  • There are 3 indicate lights in gateway surface. Red, green and blue.


Application


Real time temperature and humidity query
The system can use data, real-time curve to display the temperature and humidity data of the current cold chain equipment.

Temperature and humidity information



Early warming and alarm of high temperature



Door opening and closing information
Display the current temperature and humidity data of cold chain equipment.

   When abnormal conditions occur, the system will start early warming (Show reminders and record).
   Add door magnetic induction, and the system will automatically record opening and closing information.

Remote
real-time
monitoring



Operation Log



Data analysis

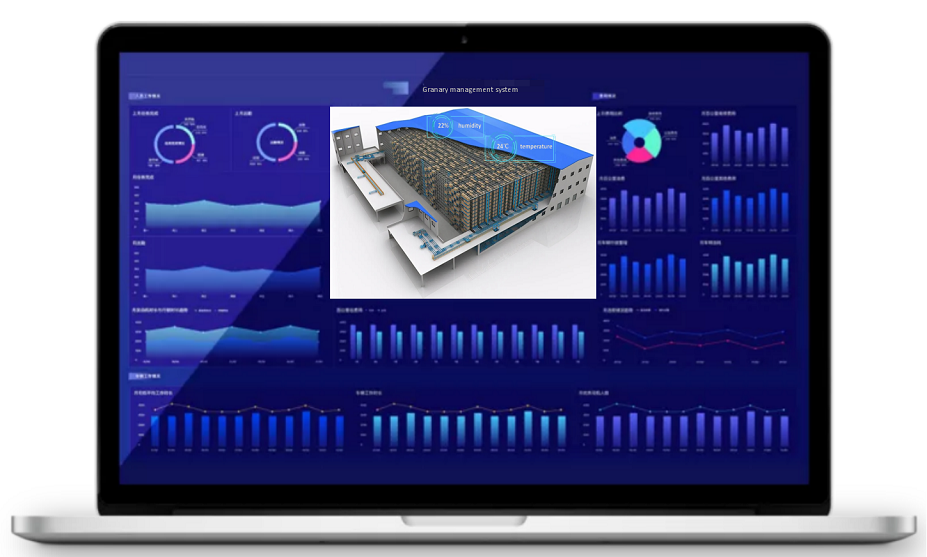

In the map interface, it will synchronously displayed the temperature and humidity data and storage location information.


   The system will automatically record all operation such as run/stop the system, User login/logout, parameters modification, and etc. Make sure every situation is well documented.   The system can analyze, view and compare various data by means of charts and curves.


Data record, clear and accurate
Temperature and humidity data, transportation route track, SMS sending record, operation log, etc. offline storage; manual or automatic backup, data export and import.




  Background interface management
Provide image interface to query basic information		   Precise position
The system can define the specific location information of the sensor.

  Display temperature curve
Display temperature change curve according to position information.		   Historical temperature query
The system supports querying historical temperature fluctuation curve.




Alarm notification
User can self-define upper and lower line temperature threshold. When it is not within the defined range, it can give audible and visual alarm and remote notification.


Wide compatibility
The system can access third-party software to quickly build upper application system.


Intelligent data analysis, worry free assistant
    The system can use charts and curves to analyze, view and compare various data. Multiple parameters of different time periods can be selected as data sources for analysis, and the generated images can enlarged, reduced, dragged, and changed according to the situation, so as to better view the analysis results.



Database

Bluetooth version Standard Bluetooth 4.0/4.1(BR/EDR, BLE)
Working Frequency 2.402G ~ 2.483GHz
Antenna Built-in microstrip antenna
Supporting Service Bluetooth Serial Port Profile
Protocol LM, LC, LL, SMP, L2CAP, ATT, GAP, GATT, SDP, RFCOMM
Effective Range 30 meter
Working Temperature -20℃ ~ +65℃/td>
Power Supply 5V USB charging
Max Transmission Speed Receiving SPP-21K b/s BLE-3K b/s
Sending SPP -20K b/s BLE-2K b/s
Network RJ45/ WiFi
Network protocol TCP/IP,DHCP,ARP,RARP,TCP,UDP
BLE connection 7.7mA
Simultaneously connect SPP,BLE 12mA
Size 106mm *106mm * 30mm
